The EVX Series from CSB Energy Technology is a line of 12V top-terminal VRLA-AGM deep cycle pure lead batteries developed for electric mobility and cyclic energy storage applications.
| Image | Model | Specification | Weight | Description |
|---|---|---|---|---|
|

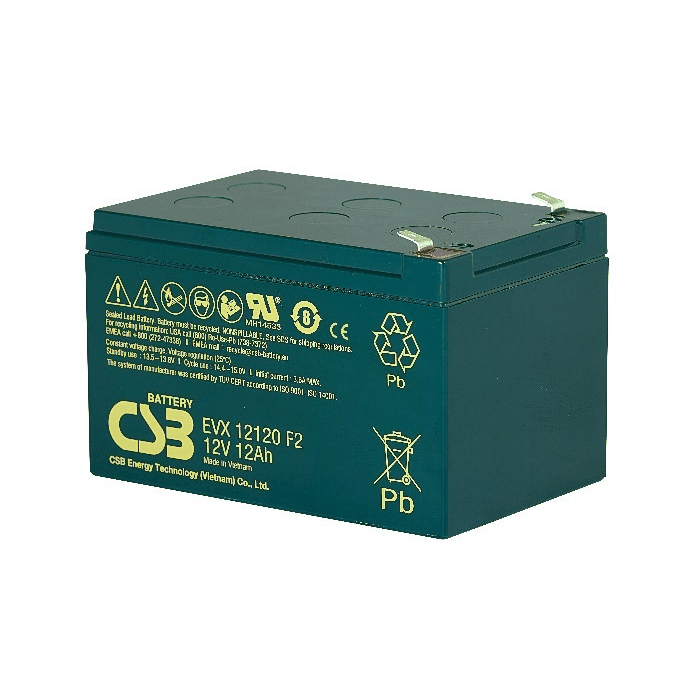

EVX12120 | 12V 12Ah | 3.83 kg | As a 12V 12Ah valve-regulated sealed lead-acid battery, the CSB EVX12120 uses AGM technology and a pure lead construction, primarily targeting electric mobility and deep cycle applications. Its 20-hour rate nominal capacity is 12Ah, maximum charging current reaches 3.60A, and design cycle life at 100% DOD is 400 cycles. |
|

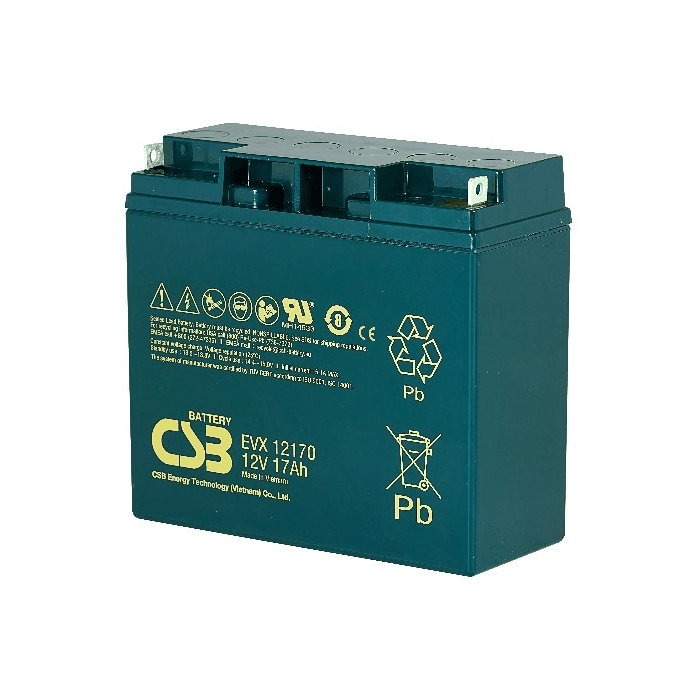

EVX12170 | 12V 17Ah | 5.67 kg | The EVX12170 from CSB Energy Technology is a 12V 17Ah valve-regulated sealed lead-acid battery that combines AGM technology with a pure lead construction, targeting electric mobility and deep-cycle applications. It delivers up to 400 cycles at 100%DOD, and its terminals support M5 bolt connections. |
|

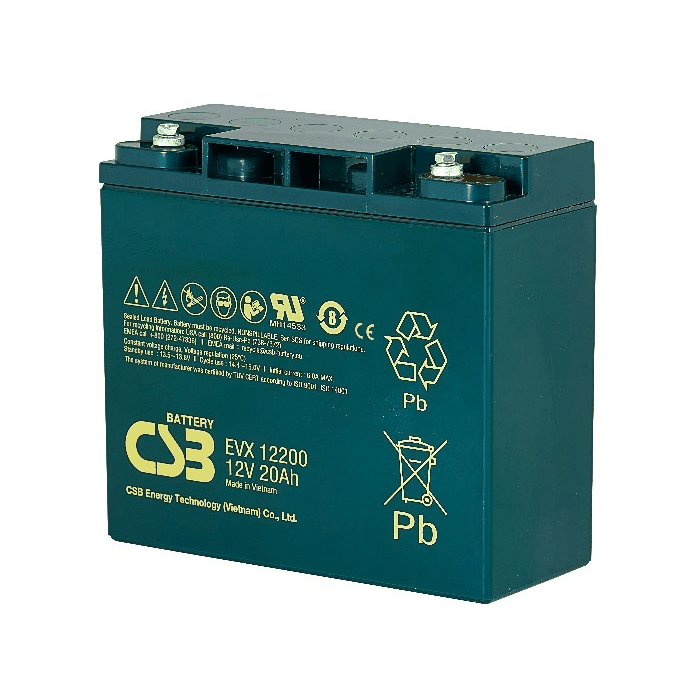

EVX12200 | 12V 20Ah | 6.55 kg | The CSB EVX12200 is a 12V 20Ah valve-regulated sealed lead-acid battery in the EVX series, featuring AGM technology and a pure lead construction. It is suitable for electric mobility and deep cycle applications, delivers 400 cycles at 100%DOD, and is certified to IEC 60254 and UL1989. |
|

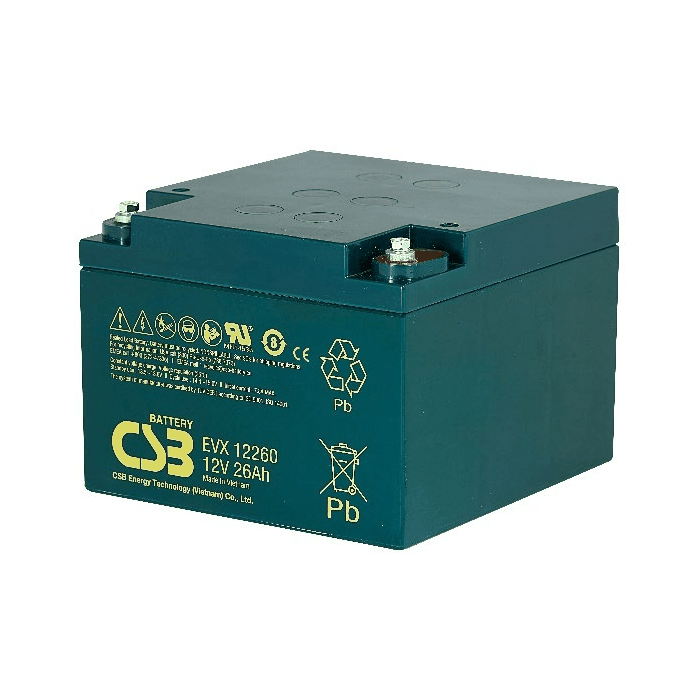

EVX12260 | 12V 26Ah | 8.65 kg | The CSB EVX12260 is a 12V 26Ah valve-regulated sealed lead-acid battery that combines pure lead construction with AGM technology for electric mobility and deep cycle applications. It delivers a cycle life of 400 cycles (100% depth of discharge), a maximum discharge current of 350A, and is equipped with I1 threaded lead-alloy terminals. |
|

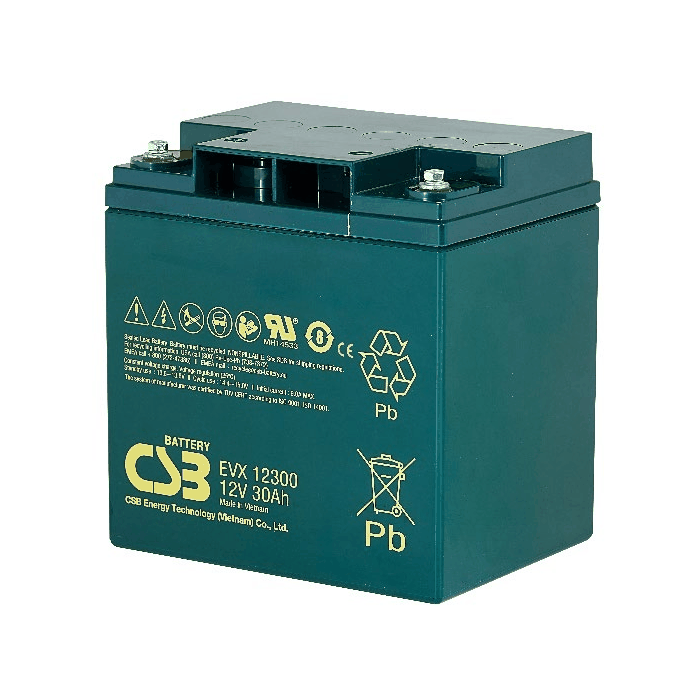

EVX12300 | 12V 30Ah | 10.40 kg | The CSB EVX12300 is a 12V valve-regulated sealed lead-acid battery in the EVX series, featuring pure lead and AGM technology with a 20-hour rate nominal capacity of 30Ah. It meets the demands of e-mobility and deep cycle applications, with a design life of 400 cycles at 100% DOD. |
|

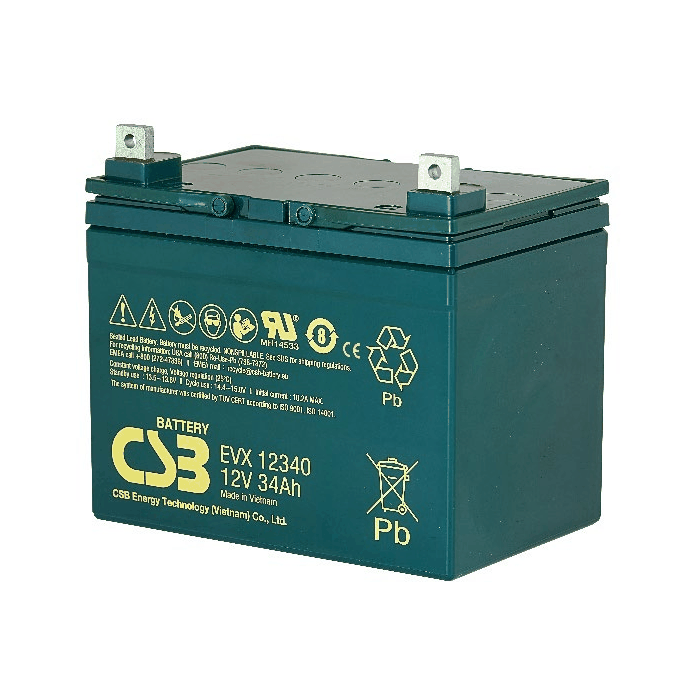

EVX12340 | 12V 34Ah | 10.77 kg | CSB EVX12340 valve-regulated sealed lead-acid battery, 12V, 34Ah, featuring AGM and pure lead technology, designed for electric mobility and deep cycle applications, supporting 400 cycles at 100%DOD, B5 terminal, weighing approximately 10.77kg. |
|

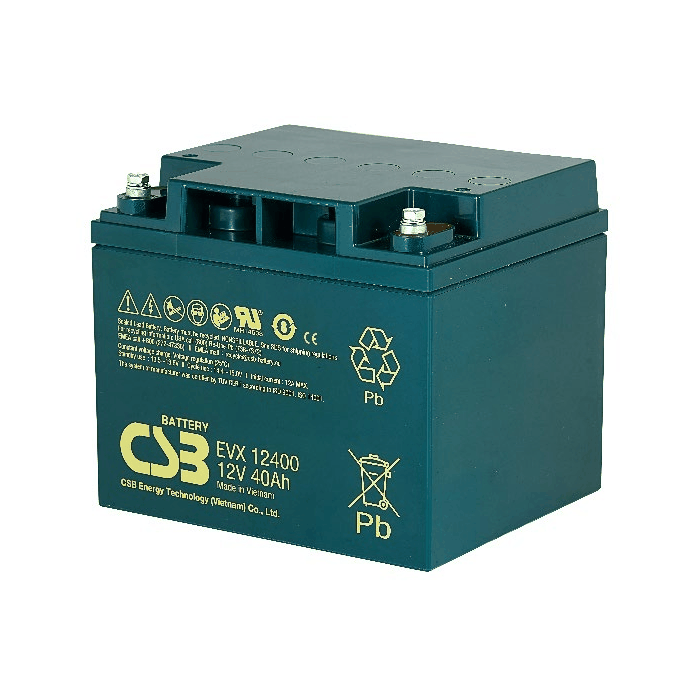

EVX12400 | 12V 40Ah | 13.20 kg | The EVX12400 is a 12V 40Ah VRLA battery from CSB, part of the EVX deep cycle series. It utilizes AGM technology and a pure lead construction, making it suitable for cyclic energy storage and electric mobility applications. It delivers a maximum discharge current of 400A and is designed for a cycle life of 400 cycles at 25°C, 100% DOD. |
|

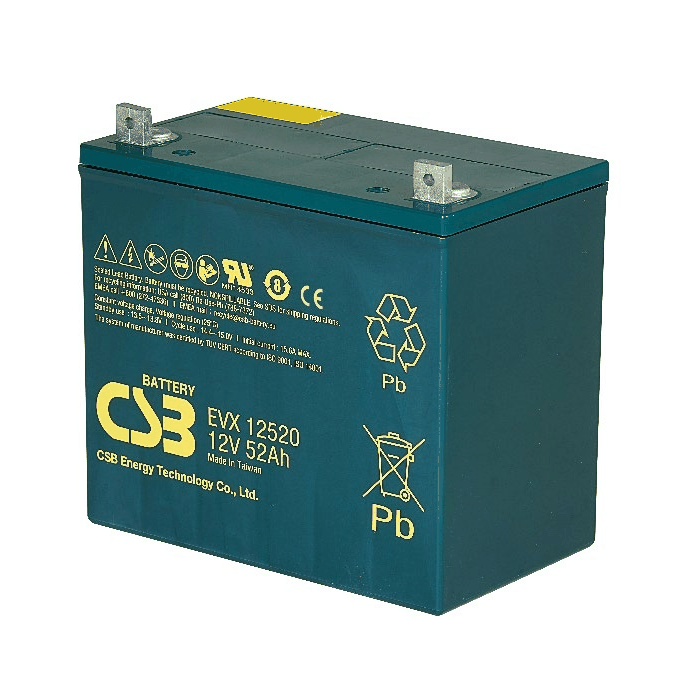

EVX12520 | 12V 52Ah | 17.87 kg | The 12V valve-regulated sealed lead-acid battery EVX12520 belongs to CSB's EVX series. It has a nominal capacity of 52Ah (20hr) and uses AGM technology and a pure lead construction. It is suitable for electric mobility and deep cycle applications and is approved to IEC 60254 and UL1989. |
|

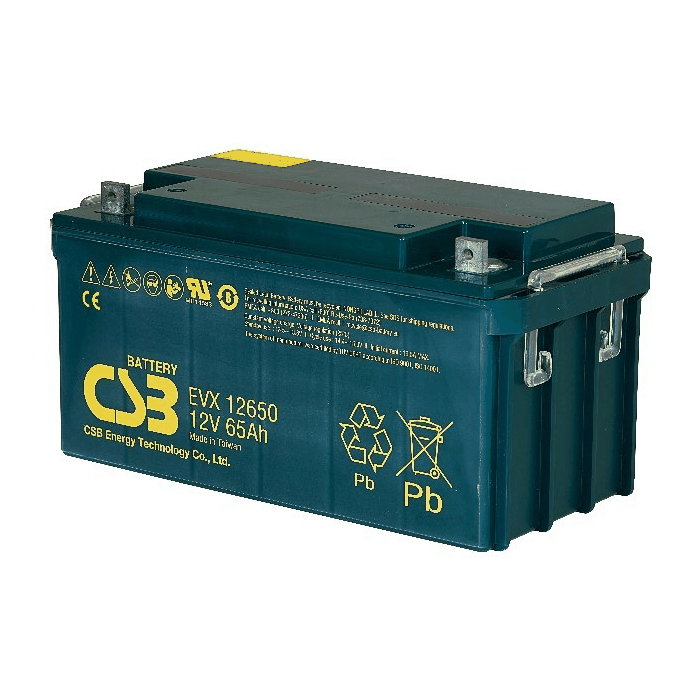

EVX12650 | 12V 65Ah | 22.20 kg | The CSB EVX12650 in the EVX series is a 12V valve-regulated sealed lead-acid battery with a nominal capacity of 65Ah (20hr-rate), featuring pure lead construction and AGM technology, suitable for electric mobility and deep cycle applications, with a design cycle life of 400 cycles at 100%DOD. |
|

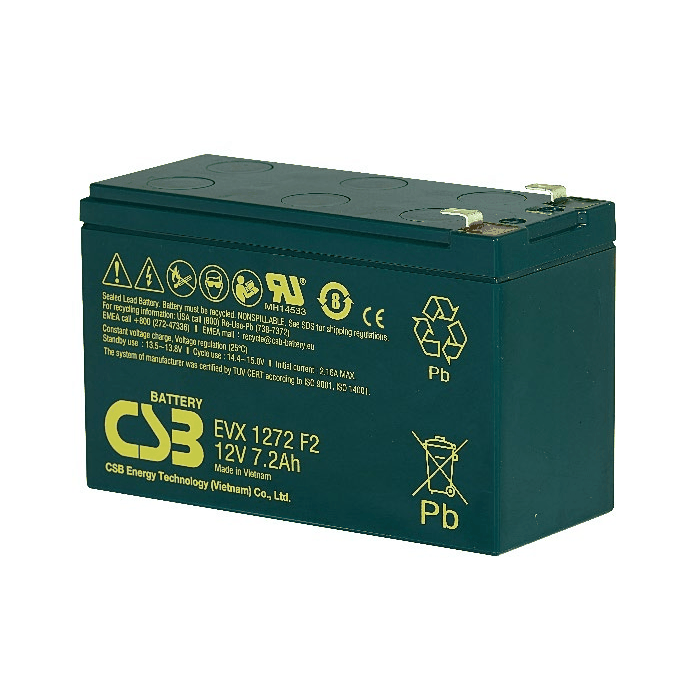

EVX1272 | 12V 7.2Ah | 2.55 kg | The CSB EVX1272 is a 12V valve-regulated sealed lead-acid battery in the EVX series, featuring AGM and pure lead design, with a 20-hour rate nominal capacity of 7.2Ah and a design life of up to 400 cycles at 100% DOD, suitable for electric mobility and deep cycle applications. |
|

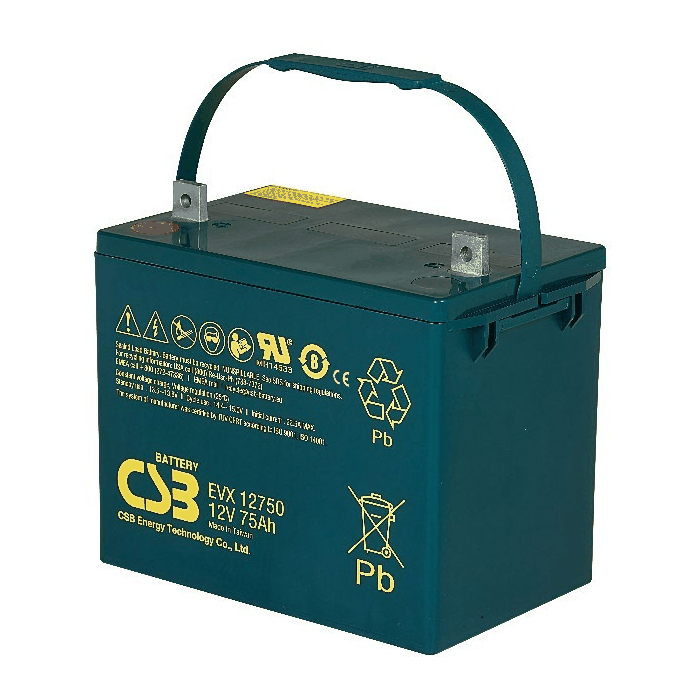

EVX12750 | 12V 75Ah | 25.60 kg | Designed for electric mobility and cyclic charge/discharge applications, CSB introduces the EVX12750 battery. This 12V 75Ah product belongs to the EVX deep cycle series, featuring AGM technology and a pure lead construction, with B6 terminals and M6 bolts. |
