The CSB XHRL-FT series is the front-terminal version of the XHRL range: a 12V VRLA-AGM battery built for data center uninterruptible power supplies (UPS), with strong high-rate discharge and three models.
| Image | Model | Specification | Weight | Description |
|---|---|---|---|---|
|
XHRL12600WFTFR | 12V 600W | 49.70 kg | The CSB XHRL12600WFTFR is a 12V front terminal valve-regulated sealed lead-acid battery belonging to the XHRL-FT series. Utilizing AGM technology, it delivers a nominal capacity of 600W @ 15min-rate, primarily designed for data center UPS and other high-rate float standby applications. |
|

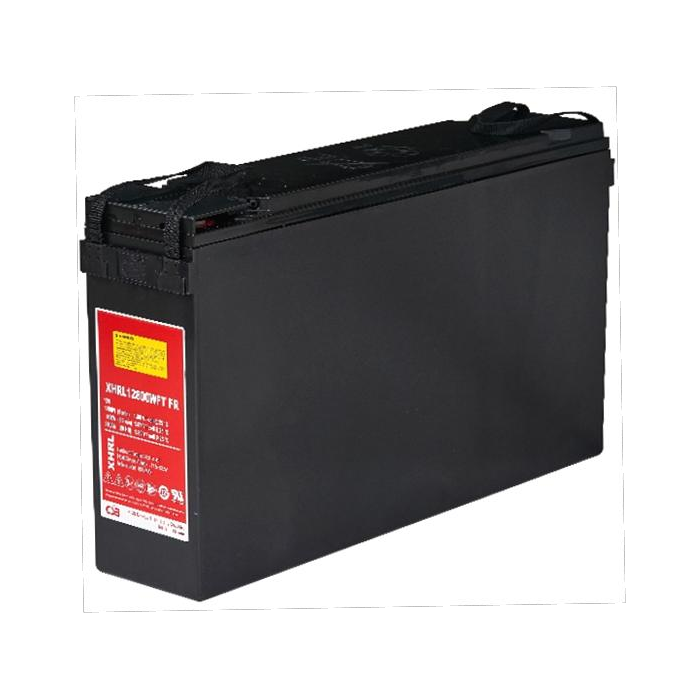

XHRL12800WFTFR | 12V 800W | 65.30 kg | 12V front terminal valve-regulated sealed lead-acid battery CSB XHRL12800WFTFR, featuring AGM technology. Nominal capacity reaches 800W @ 15min-rate, with a design life of up to 10 years, primarily intended for data center UPS and other applications requiring high-rate float backup power. |
|

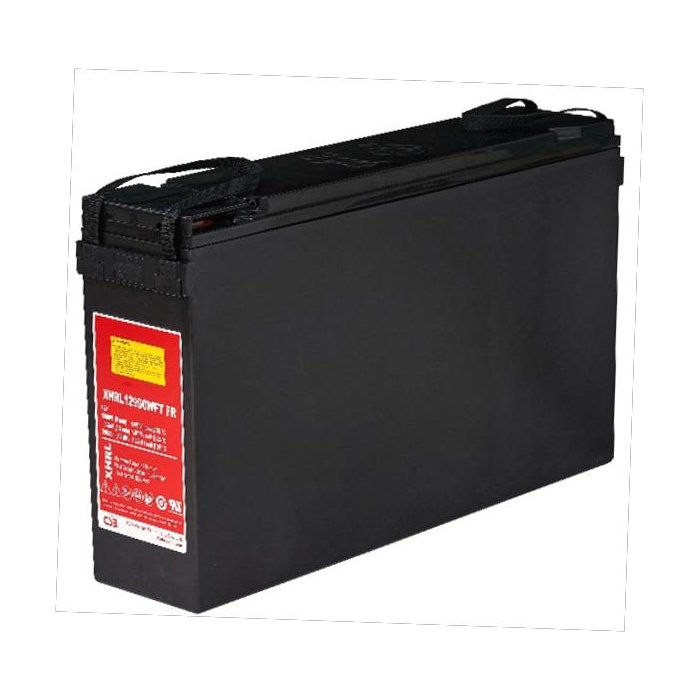

XHRL12900WFTFR | 12V 900W | 69.50 kg | As a member of the XHRL-FT series, the CSB XHRL12900WFTFR is a 12V front terminal valve-regulated sealed lead-acid battery utilizing AGM technology, with a nominal capacity of 900W @ 15min-rate, primarily designed for high-rate float standby applications such as data center UPS. |
