To meet the demands of data center uninterruptible power supplies and similar applications, CSB introduces the XHRL series of 12V top-terminal VRLA-AGM lead-acid batteries.
| Image | Model | Specification | Weight | Description |
|---|---|---|---|---|
|

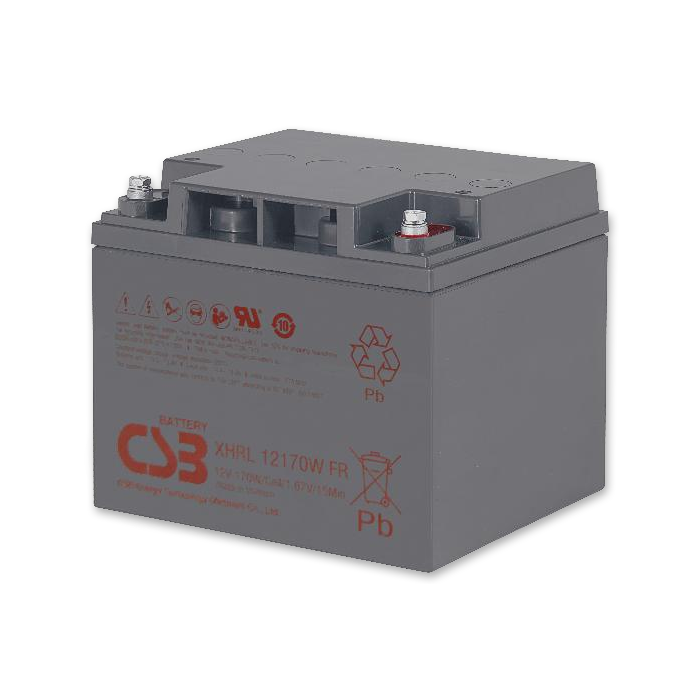

XHRL12170W | 12V 170W | 13.58 kg | Built with AGM technology and a pure lead construction, the CSB XHRL12170W is a 12V valve-regulated sealed lead-acid battery designed for high-rate float standby applications such as data center UPS systems. Its nominal capacity is 170W at the 15-minute rate and 321.33 W/cell at the 5-minute rate, with a design float life of up to 10 years. |
|

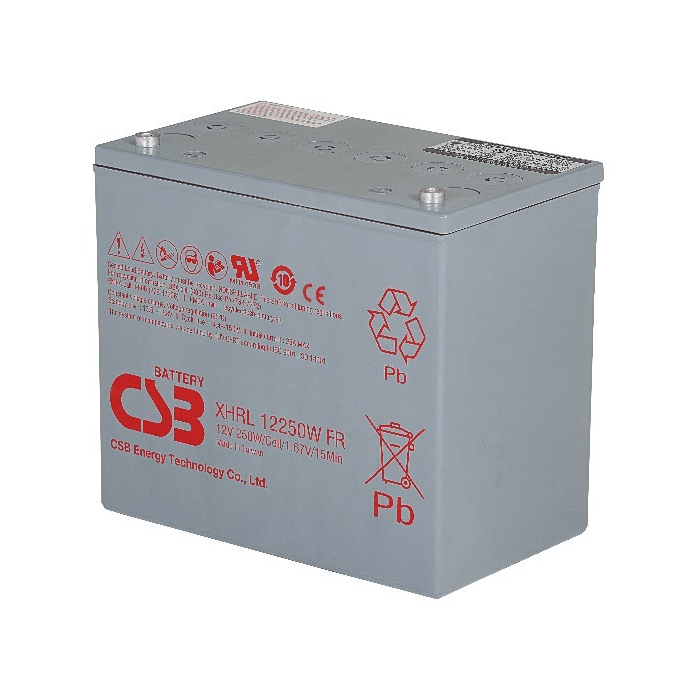

XHRL12250W | 12V 250W | 18.52 kg | Part of the XHRL series, the CSB XHRL12250W is a 12V valve-regulated sealed lead-acid battery designed primarily for high-rate backup power applications such as data center UPS systems. It delivers 250W at the 15-minute rate and 463.17 W/cell at the 5-minute rate, with a float charging voltage range of 13.5-13.8 Vdc and a design life of up to 10 years. |
|

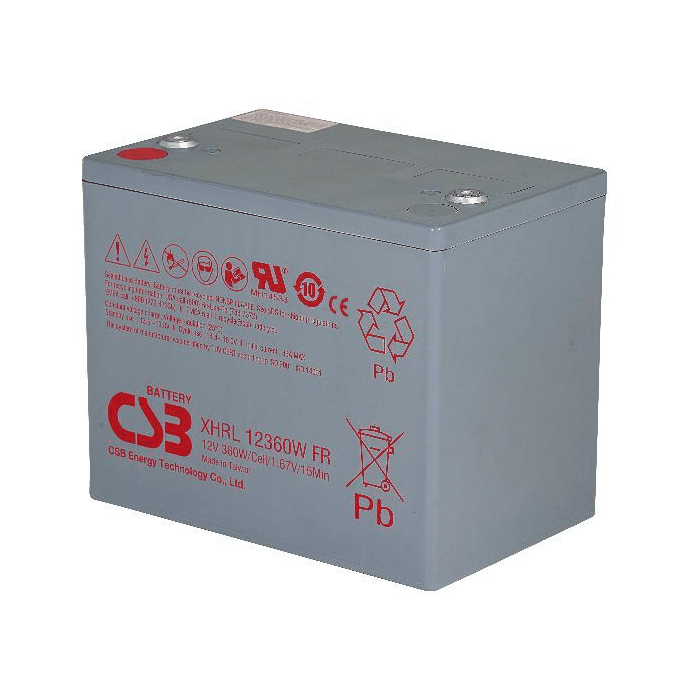

XHRL12360W | 12V 360W | 28.30 kg | Part of the XHRL series, the CSB XHRL12360W is a 12V valve-regulated sealed lead-acid battery designed primarily for float standby applications such as data center UPS systems, featuring high-rate discharge capability. It delivers a nominal capacity of 360W at the 15-minute rate and 667.17 W/cell at the 5-minute rate, with a design life of up to 10 years under 25°C float charging conditions. |
|

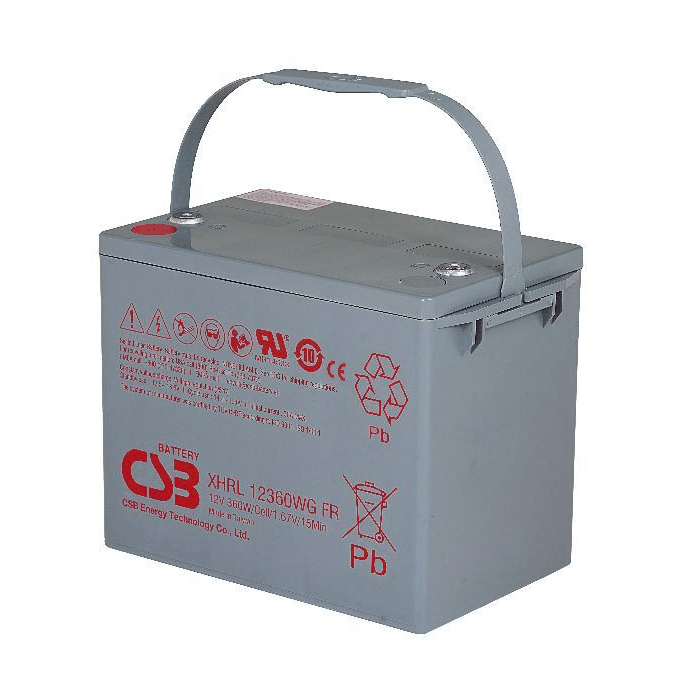

XHRL12360WG | 12V 360W | 28.30 kg | The 12V valve-regulated sealed lead-acid battery CSB XHRL12360WG belongs to the XHRL series and is engineered for high-rate float standby applications such as data center UPS systems. It has a nominal capacity of 360W @ 15min-rate and a 15-minute power output of 372.78 W/cell. Utilizing AGM technology, it achieves 99% gas recombination efficiency and offers a design life of up to 10 years. |
|

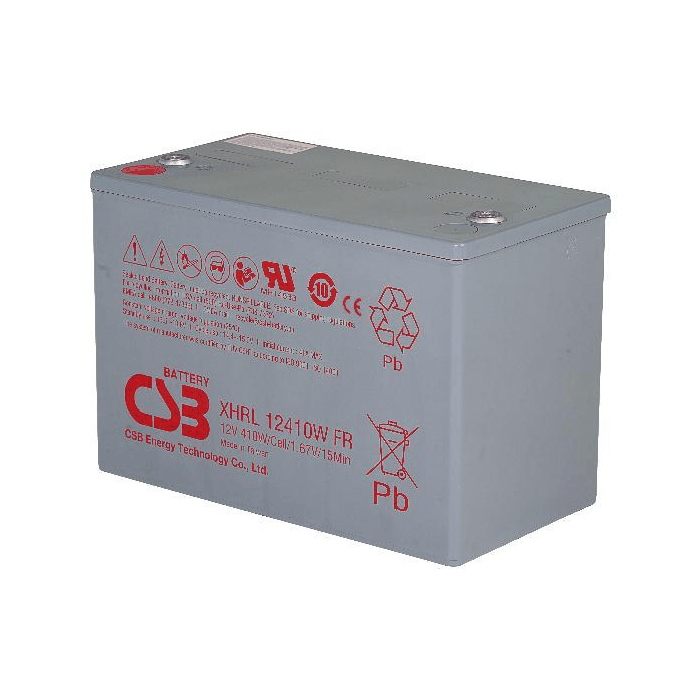

XHRL12410W | 12V 410W | 32.60 kg | Designed for high-rate float standby requirements, CSB introduces the XHRL12410W, a 12V valve-regulated sealed lead-acid battery using AGM technology. Part of the XHRL series, it is commonly used in data center UPS and similar applications, with a 15-minute rate nominal capacity of 410W and a design float life of up to 10 years. |
|

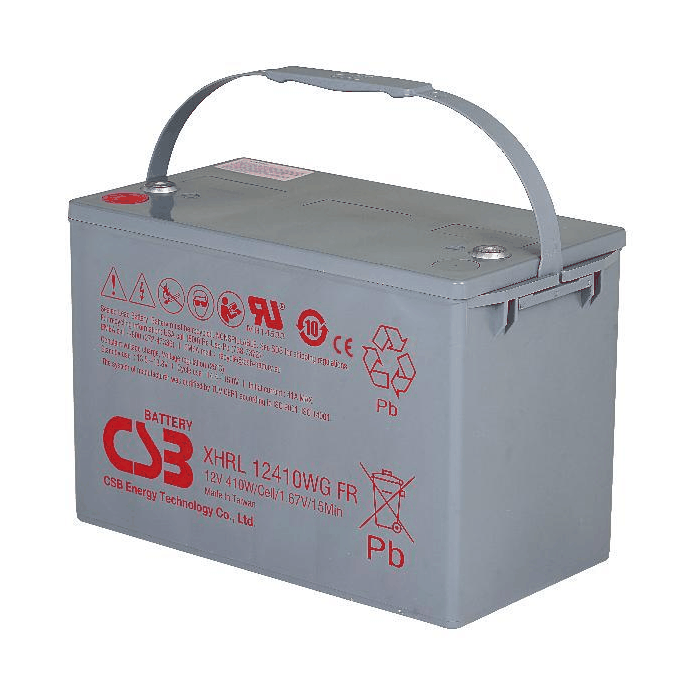

XHRL12410WG | 12V 410W | 32.60 kg | The CSB XHRL12410WG with AGM technology is a 12V valve-regulated sealed lead-acid battery, part of the XHRL series of high-rate products, primarily used in data center UPS and other float standby applications. Its 15-minute rate power is 410W, with a design life of up to 10 years. |
|

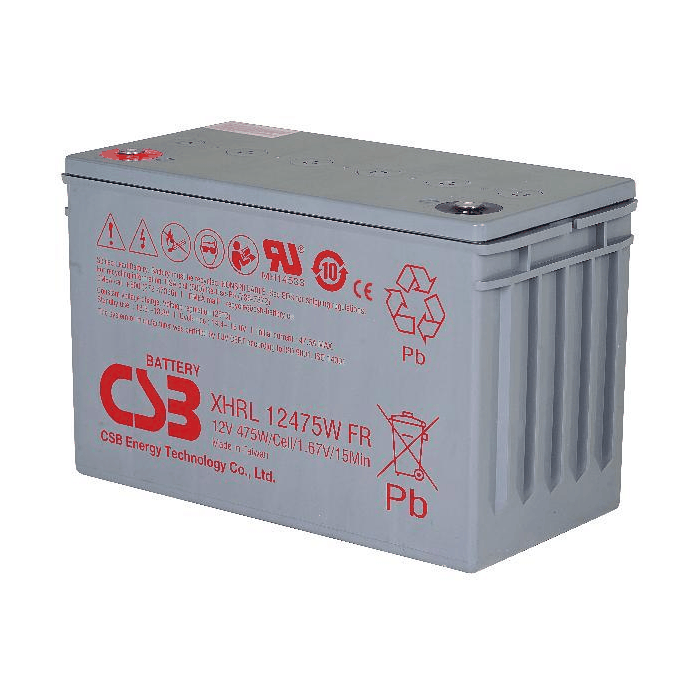

XHRL12475W | 12V 475W | 36.20 kg | The 12V valve-regulated sealed lead-acid battery CSB XHRL12475W belongs to the XHRL series and is primarily designed for high-rate float backup requirements such as data center UPS. Its 15-minute rate power reaches 475W, its 5-minute rate is 880.17 W/cell, and its design life can reach up to 10 years. |
|

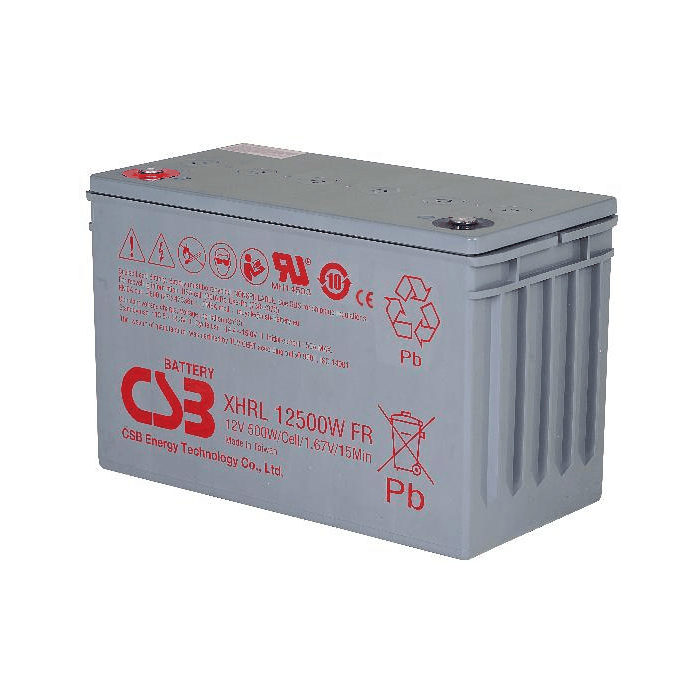

XHRL12500W | 12V 500W | 36.90 kg | The CSB XHRL12500W is a 12V valve-regulated sealed lead-acid (VRLA) battery in the XHRL series with AGM technology, designed primarily for high-rate float standby use such as data center UPS. It delivers 500W at the 15-minute rate and 912.17 W/cell at the 5-minute rate, with a design float life of up to 10 years. |
|

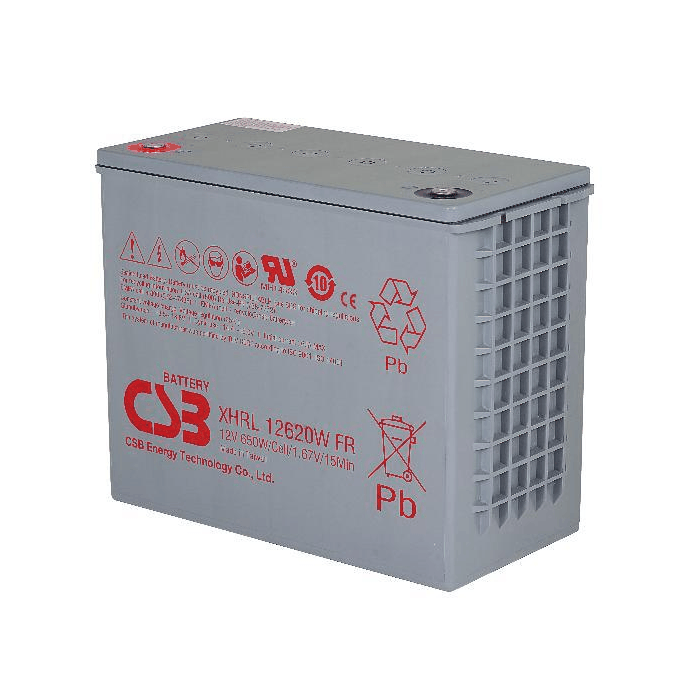

XHRL12620W | 12V 620W | 47.20 kg | The CSB XHRL12620W battery is a 12V valve-regulated sealed lead-acid type that uses AGM technology, with a 15-minute rate nominal capacity of 620W. It meets the high-rate float standby power needs of data center UPS and similar applications, with a design float life of up to 10 years. |
|

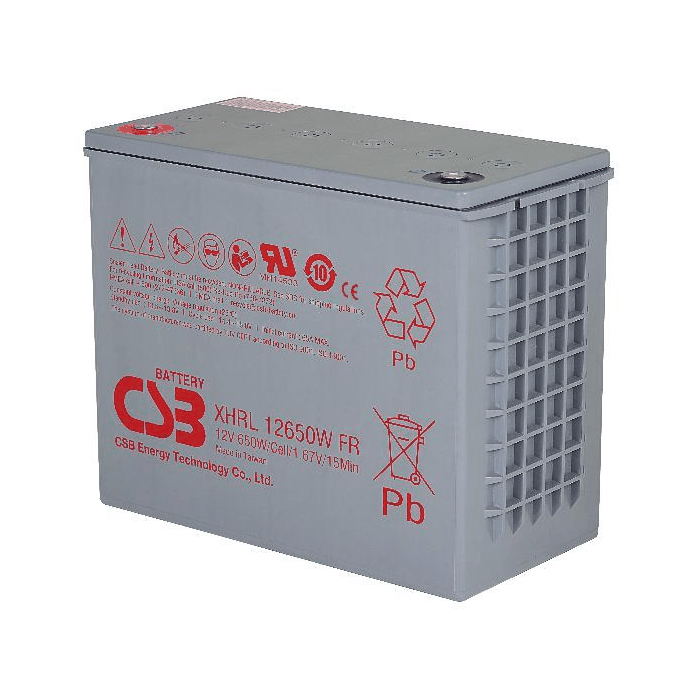

XHRL12650W | 12V 650W | 47.90 kg | The CSB XHRL12650W is a 12V valve-regulated sealed lead-acid battery belonging to the XHRL series, primarily designed for high-rate float standby requirements such as data center UPS. The nominal capacity is 650W @ 15-minute rate, with 5-minute power of 1054.83 W/cell and 15-minute power of 651.83 W/cell. The battery utilizes AGM technology with gas recombination efficiency up to 99% and is maintenance-free. Design float life can reach 10 years under 25°C standby conditions; according to Eurobat standards, it can exceed 12 years at 20°C. The case material is PP, with a flame-retardant version also available. Terminals are I2 threaded lead alloy terminals, compatible with M6 bolts. |
